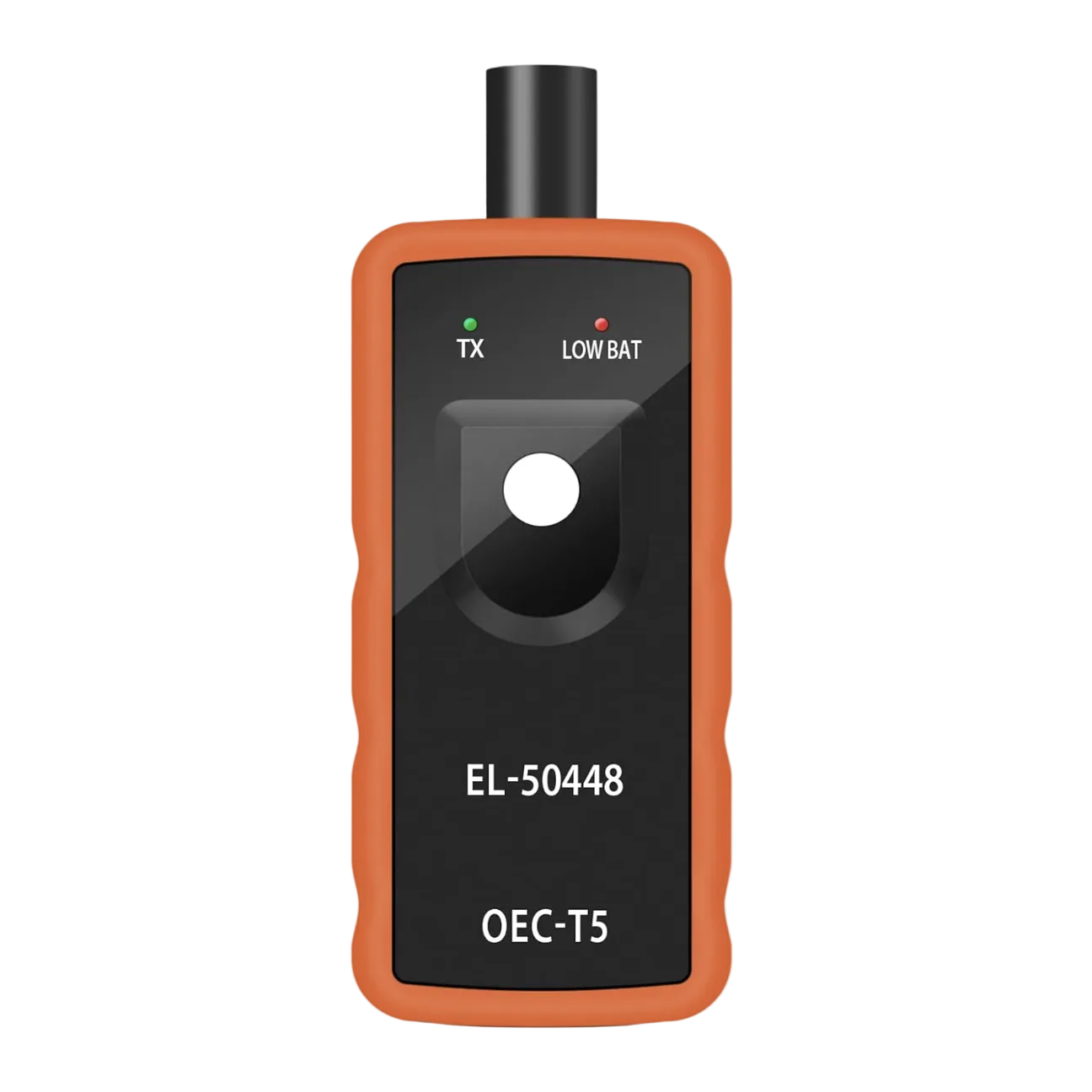

EL50448 Elite TPMS Relearn Tool for GM Vehicles
The EL50448 Elite is a dedicated tire pressure sensor activation and TPMS relearn tool designed for many GM vehicles, including Chevrolet, Buick, GMC, and Cadillac models. It helps reset and relearn TPMS sensors after tire rotation, sensor replacement, seasonal tire changes, or TPMS warning light service.
Product Overview
The EL50448 Elite TPMS Relearn Tool is built for GM tire pressure monitoring system service. After your vehicle is placed into TPMS learn mode, hold the tool near the tire valve stem and press the activation button. The tool sends a signal to the sensor so the vehicle can relearn the sensor position.
It is a practical solution for DIY users, tire shops, repair shops, and automotive technicians who need a fast, compact, and cost-effective tool for common GM TPMS relearn procedures.
Dedicated GM TPMS Tool
Designed for many Chevrolet, Buick, GMC, and Cadillac models equipped with compatible TPMS systems.
Fast Sensor Activation
Helps trigger tire pressure sensors during relearn after tire rotation, sensor replacement, or wheel service.
315 MHz / 433 MHz
Supports common GM TPMS sensor frequencies across different model years and platforms.
Simple One-Button Use
Easy handheld operation for both first-time DIY users and professional service environments.
Designed for GM Vehicles

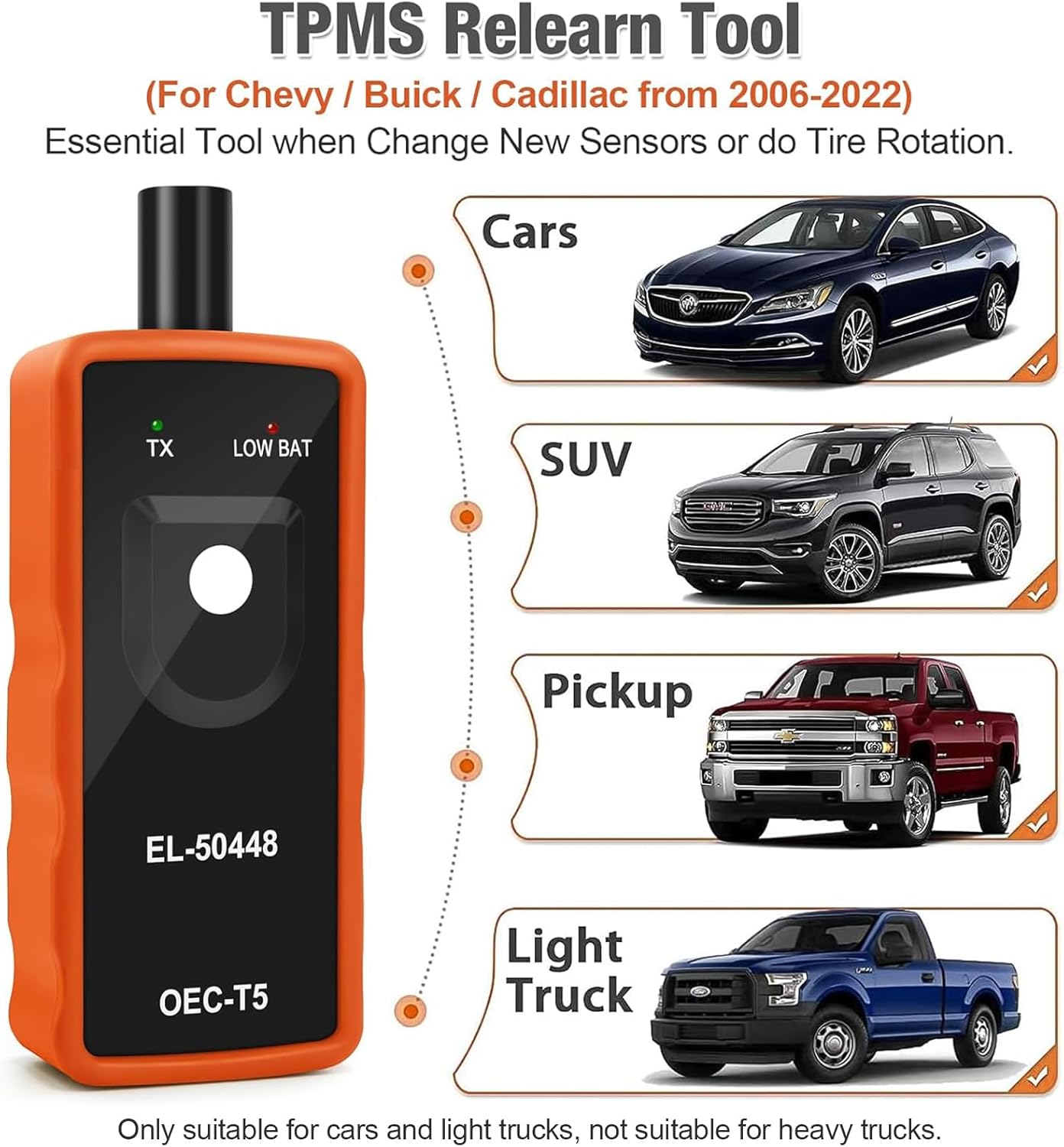

The EL50448 Elite is intended for many GM vehicles from 2006 onward that use compatible 315 MHz or 433 MHz TPMS sensors. Typical supported brands include Chevrolet, Buick, GMC, and Cadillac.
Important Compatibility Note: TPMS compatibility depends on the vehicle year, model, trim, sensor frequency, sensor type, and relearn procedure. This tool activates compatible sensors during relearn. It does not program blank TPMS sensors or write sensor IDs.
| Recommended For | Many GM vehicles with compatible TPMS relearn systems |
|---|---|
| Common Brands | Chevrolet, Buick, GMC, Cadillac |
| Common Model Years | Many GM vehicles from 2006 onward, depending on TPMS system and sensor type |
| Sensor Frequency | 315 MHz and 433 MHz |
| Main Function | TPMS sensor activation and tire pressure sensor relearn support |
| Not For | Sensor programming, writing sensor IDs, or vehicles requiring a scan tool-only procedure |
When Do You Need This TPMS Tool?
GM vehicles often require a TPMS relearn procedure after tire or sensor service. The EL50448 Elite helps activate each tire pressure sensor in the correct sequence while the vehicle is in relearn mode.
- After rotating tires and the vehicle needs to relearn sensor locations.
- After replacing one or more TPMS sensors.
- After installing new wheels or changing seasonal tire sets.
- When the TPMS warning light remains on after tire service.
- When the vehicle enters TPMS learn mode and requires each sensor to be triggered.
- When you want to avoid unnecessary dealership visits for compatible relearn procedures.

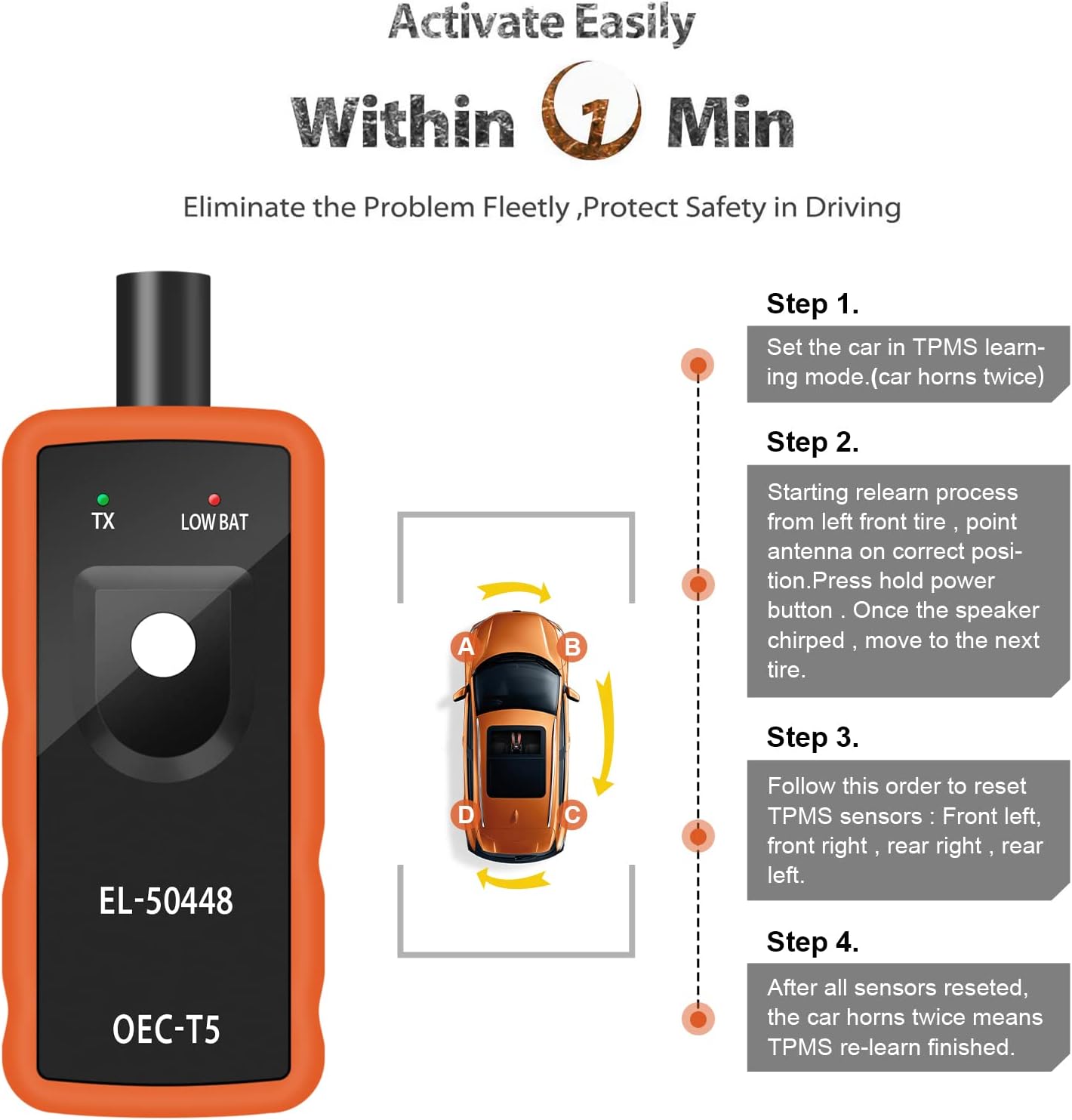

How to Use the EL50448 Elite
The exact relearn procedure depends on your GM vehicle. Always follow your owner’s manual or official service steps. A typical GM TPMS relearn procedure works like this:
Enter Learn Mode
Put the vehicle into TPMS relearn mode using the vehicle-specific procedure.
Start at the Correct Tire
Most GM procedures begin at the driver-side front tire, then continue in sequence.
Activate the Sensor
Hold the tool near the valve stem and press the activation button until the vehicle confirms.
Repeat for All Wheels
Continue around the vehicle in the correct order until the relearn procedure is complete.
For best results, make sure the vehicle is already in TPMS relearn mode, the tool is close to the valve stem, and the tire pressure sensor battery is not weak or dead.
Key Features
- GM-Focused TPMS Relearn: Designed for many Chevrolet, Buick, GMC, and Cadillac vehicles.
- Dual Frequency Support: Works with compatible 315 MHz and 433 MHz TPMS sensors.
- Fast Reset Support: Helps complete relearn procedures in minutes when the vehicle and sensors are compatible.
- Portable Design: Compact and lightweight for a glove box, toolbox, or service cart.
- Cost-Effective Solution: Useful for tire rotations, sensor replacement, and routine tire maintenance.
Built for GM TPMS Service
The EL50448 Elite is a simple but useful tool for GM owners and technicians. It helps activate compatible tire pressure sensors quickly, making tire rotation and TPMS relearn service easier and more efficient.
Specifications
| Product Name | EL50448 Elite TPMS Relearn Tool for GM Vehicles |
|---|---|
| Product Type | TPMS relearn tool / tire pressure sensor activation tool / TPMS reset tool |
| Supported Frequencies | 315 MHz and 433 MHz |
| Vehicle Focus | GM vehicles with compatible TPMS relearn systems |
| Common Brands | Chevrolet, Buick, GMC, Cadillac |
| Operation | One-button sensor activation |
| Common Use Cases | Tire rotation, sensor replacement, wheel change, seasonal tire change, TPMS warning light service |
| User Type | DIY users, automotive technicians, tire shops, repair shops |

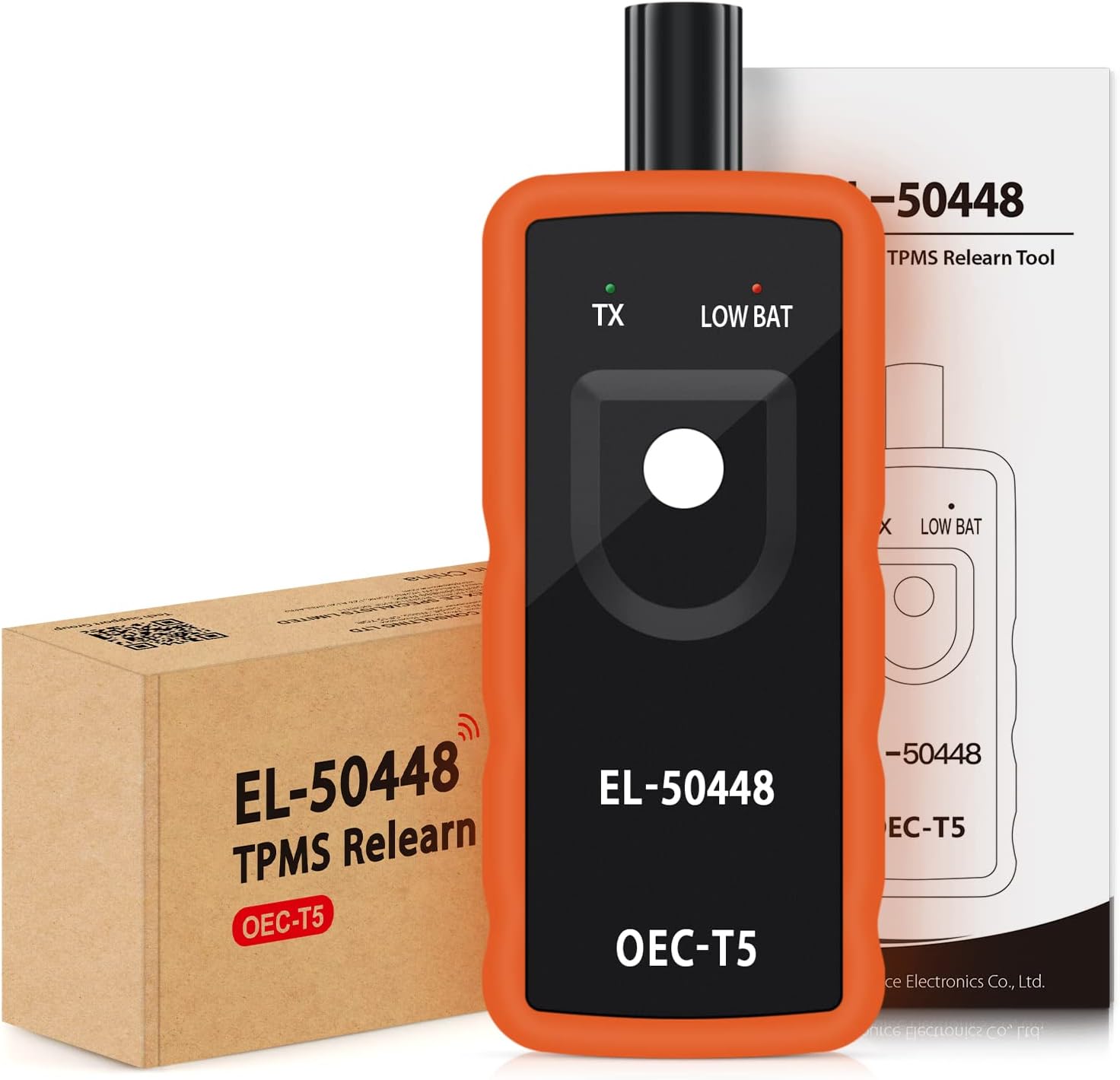

What’s Included
- 1 × EL50448 Elite TPMS Relearn Tool
- Basic TPMS relearn and activation support for compatible GM vehicles
- Packaging may vary depending on inventory and production batch
Before You Buy
This tool is designed to activate compatible TPMS sensors during relearn procedures. It is not a universal TPMS programming tool. Before purchasing, confirm your GM vehicle year, model, sensor frequency, and relearn procedure.
If you are unsure whether this tool is suitable for your GM vehicle, contact us before ordering with your vehicle year, make, model, and current TPMS issue.
Frequently Asked Questions
What is the EL50448 Elite used for?
It is used to activate compatible GM TPMS sensors during tire pressure sensor relearn procedures, commonly after tire rotation, TPMS sensor replacement, wheel changes, or seasonal tire service.

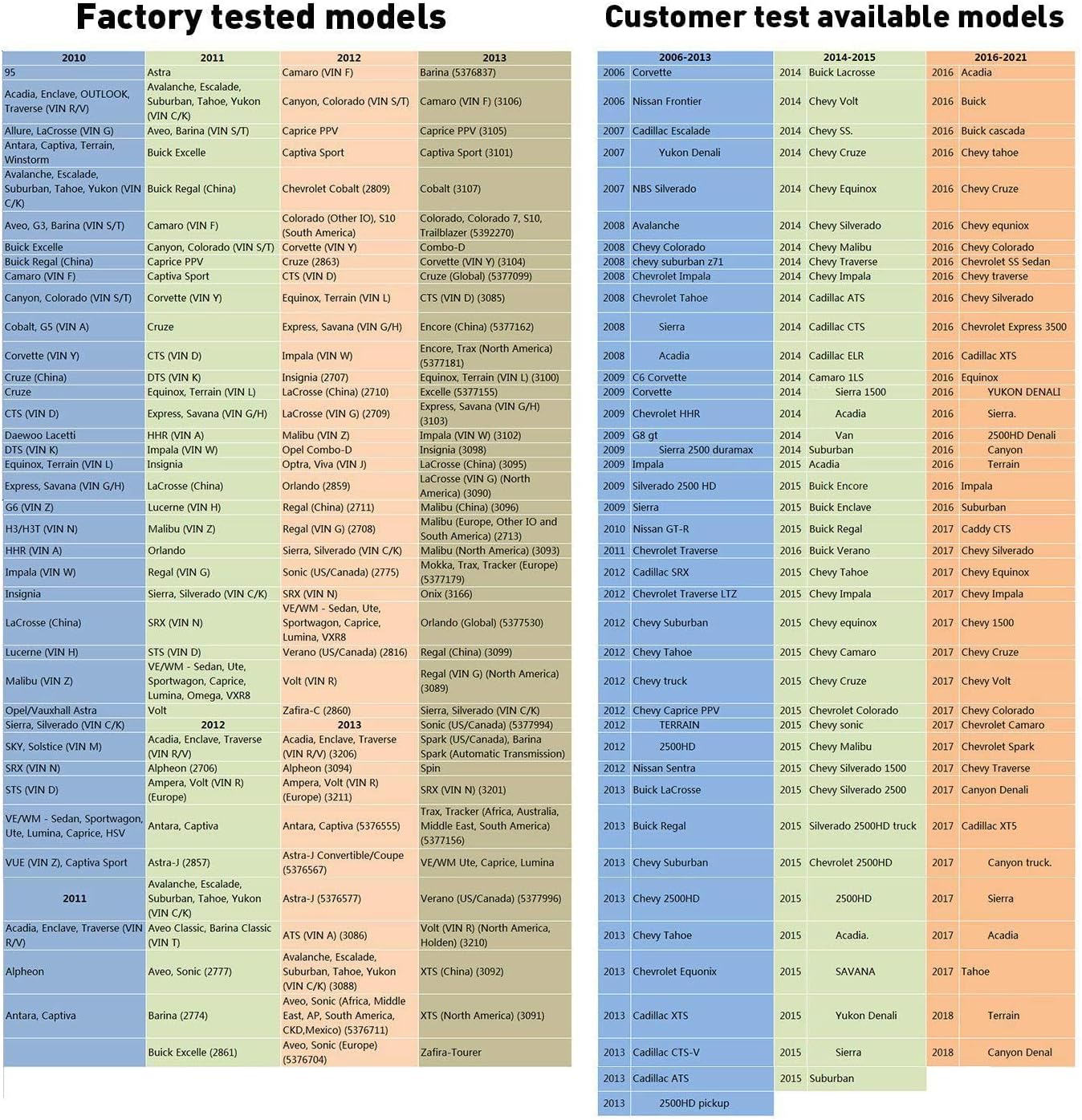

Which GM vehicles can use this tool?
It is designed for many Chevrolet, Buick, GMC, and Cadillac vehicles from 2006 onward that use compatible 315 MHz or 433 MHz TPMS sensors. Compatibility depends on year, model, trim, sensor type, and relearn procedure.
Does this tool support both 315 MHz and 433 MHz?
Yes. The EL50448 Elite supports compatible 315 MHz and 433 MHz TPMS sensors used across different GM platforms and model years.
Can this tool program new TPMS sensors?
No. This is a TPMS relearn and activation tool. It helps trigger compatible sensors while the vehicle is in relearn mode, but it does not program blank sensors or write sensor IDs.
Why is my TPMS sensor not responding?
Common reasons include the vehicle not being in relearn mode, wrong tire sequence, weak or dead TPMS sensor battery, incompatible sensor frequency, incorrect tool position, aftermarket sensor issues, or a vehicle that requires a different procedure.

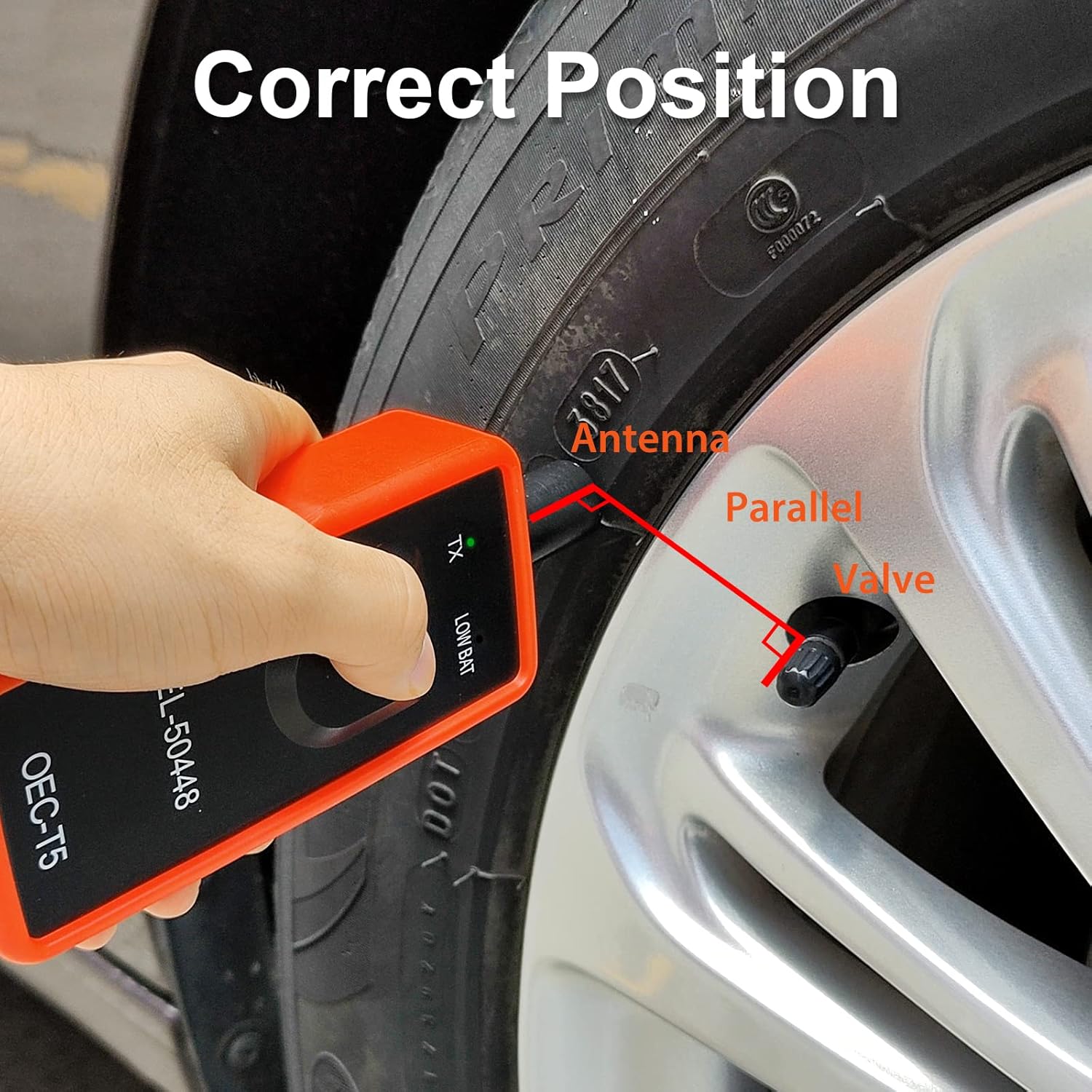

Where should I hold the tool during activation?
Hold the tool near the tire sidewall close to the valve stem, then press the activation button while the vehicle is in TPMS relearn mode.
Trust & Support
EL50448 focuses on TPMS relearn tools, tire pressure reset products, sensors, and related accessories. Our goal is to help customers choose the right tool and complete TPMS service with clear product information and responsive support.
GM TPMS Relearn Made Simple
Choose the EL50448 Elite if you need a compact, easy-to-use TPMS relearn tool for compatible GM tire pressure sensor service.
