Common TPMS Relearn Methods by Vehicle Type
When I help customers choose a TPMS tool, the first question is not “Which tool is the most expensive?” The real question is: what relearn method does your vehicle require? Some vehicles can relearn automatically after driving. Some need to enter TPMS learn mode and activate each sensor with a trigger tool. Others require an OBD-capable TPMS tool to write sensor IDs into the vehicle ECU.
Quick Answer: What Are the 3 Main TPMS Relearn Methods?
The three most common TPMS relearn methods are auto relearn, stationary relearn, and OBD relearn. Auto relearn usually happens after driving the vehicle for a specific time or speed. Stationary relearn requires the vehicle to enter TPMS learn mode, then each tire sensor is activated with a tool such as U508 or TPS10. OBD relearn requires a TPMS diagnostic tool such as TPS30 or Autel MK900TS to scan sensor IDs and write them into the vehicle ECU through the OBD port.
Before You Start: Check the Basics
Before using any TPMS relearn tool, I always tell customers to check the simple things first. Make sure all tires are inflated to the pressure listed on the driver-side door placard or owner’s manual. Inspect for nails, slow leaks, cracked valve stems, damaged sensors, and weak sensor batteries.
A TPMS relearn tool can help the vehicle recognize sensors, but it cannot repair a leaking tire, fix a dead sensor battery, or make an incompatible sensor work with the wrong vehicle.
- Check tire pressure with a reliable gauge before starting relearn.
- Confirm the vehicle year, make, model, and trim level.
- Confirm whether the sensors are original, replacement, or programmable sensors.
- Confirm whether the vehicle uses 315 MHz, 433 MHz, or another TPMS protocol.
- Confirm whether the vehicle requires auto relearn, stationary relearn, or OBD relearn.
Compatibility may vary by vehicle year, make, model, trim level, sensor frequency, sensor type, and relearn procedure. Always confirm the vehicle-specific TPMS procedure before purchasing or using a TPMS tool.

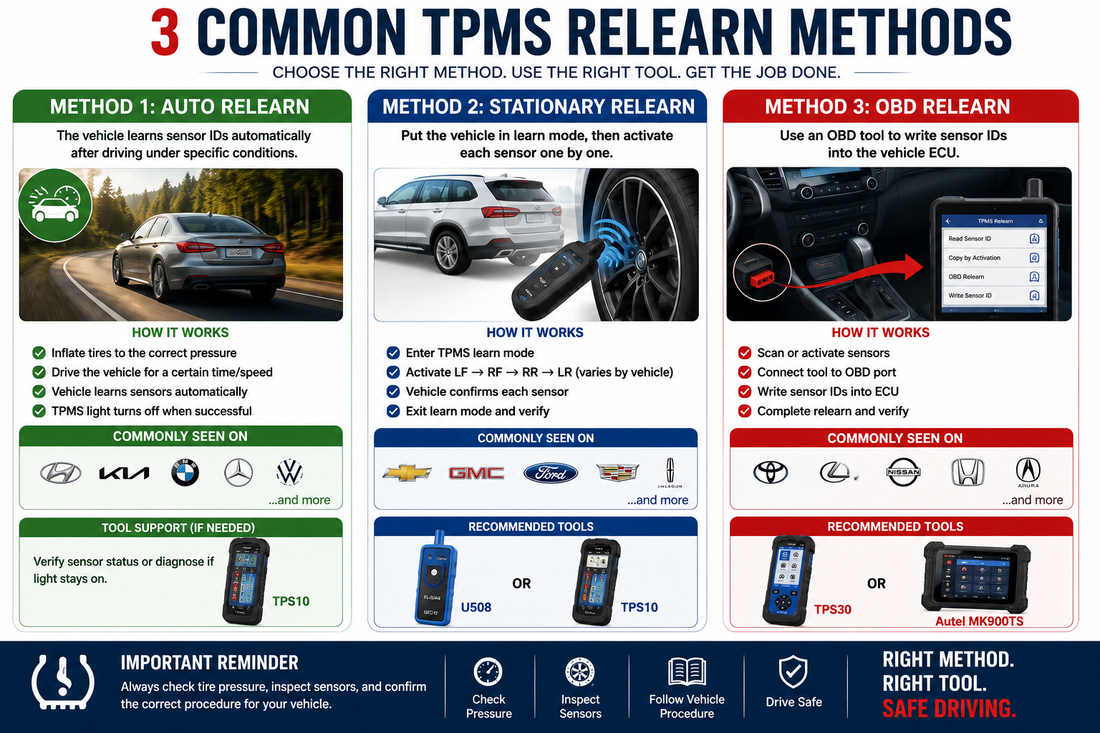

The 3 Common TPMS Relearn Methods
1. Auto Relearn
The vehicle learns sensor IDs automatically after the tires are properly installed and the vehicle is driven for a certain distance, time, or speed.
Tool usually not required, but a scan tool may help confirm sensor status if the light stays on.
2. Stationary Relearn
The vehicle is placed into TPMS learn mode, then each tire sensor is activated one by one near the valve stem.
Use U508 Use TPS103. OBD Relearn
The tool scans sensor IDs, connects to the vehicle OBD port, and writes the correct sensor IDs into the vehicle ECU or TPMS module.
Use TPS30 Use Autel MK900TSMethod 1: Auto TPMS Relearn
Auto relearn is the easiest method when the vehicle supports it. After the sensors are installed and the tires are inflated correctly, the vehicle may relearn the sensors after driving under the required conditions. Some vehicles need several minutes of driving above a specific speed. Others may need a longer drive cycle.
Common situations where auto relearn may apply:
- Some newer vehicles after tire rotation or wheel replacement.
- Some European vehicles that allow reset from the dashboard or infotainment menu.
- Some Hyundai, Kia, BMW, Mercedes-Benz, Volkswagen, Audi, and similar systems, depending on model year and TPMS design.
Recommended Tool Support
Auto relearn may not need a trigger tool, but if the TPMS light stays on, I recommend checking whether each sensor is alive before assuming the vehicle will relearn. A diagnostic tool like TPS10 can help scan or verify sensor response on compatible applications.
Check TPS10Method 2: Stationary Relearn with Sensor Activation
Stationary relearn is common on many GM and Ford vehicles. The vehicle enters TPMS learn mode, then the user activates each tire pressure sensor in a specific sequence. The vehicle may confirm each sensor with a horn chirp, light flash, or screen message.
This method usually starts at the left front tire, then continues around the vehicle in a required order. The exact order depends on the vehicle, so always follow the owner’s manual or service procedure.
Typical stationary relearn workflow:
- Set all tires to the recommended pressure.
- Put the vehicle into TPMS learn mode.
- Hold the activation tool near the valve stem.
- Trigger the sensor until the vehicle confirms the signal.
- Repeat for each wheel in the required order.
- Exit learn mode and verify the TPMS light status.

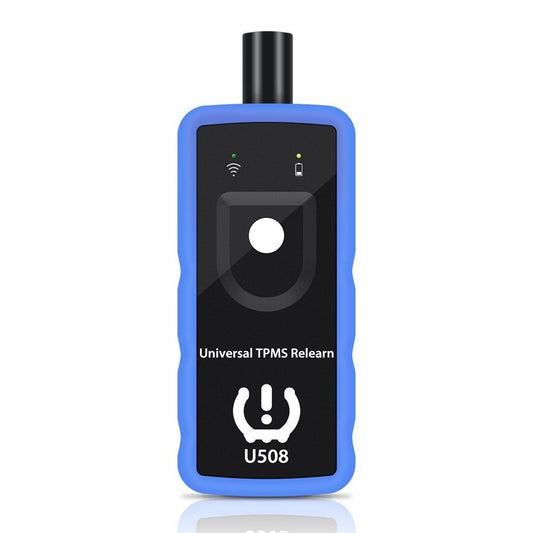

U508 Universal TPMS Relearn Tool
I recommend the U508 when customers need a simple sensor activation tool for compatible stationary relearn procedures.
- Activates compatible TPMS sensors.
- Supports 315 MHz and 433 MHz applications.
- Useful for many relearn-mode vehicles.
TPS10 Universal TPMS Tool
I recommend the TPS10 when customers need a more capable TPMS tool with sensor activation and scan support.
- Sensor activation and scan support.
- Vehicle menu and guided operation.
- Good for DIY users and repair shops.
Method 3: OBD Relearn by Writing Sensor IDs into ECU
OBD relearn is more advanced. In this method, the TPMS tool reads or scans the sensor IDs, connects to the vehicle through the OBD port, and writes the sensor IDs into the ECU, BCM, or TPMS module, depending on the vehicle design.
This method is common on many Asian vehicles and some European or specialty vehicles. It is also important when replacement sensors are installed and the vehicle needs the exact sensor IDs registered.
Typical OBD relearn workflow:
- Select the correct vehicle make, model, and year on the tool.
- Scan each TPMS sensor or enter sensor IDs if required.
- Connect the tool to the vehicle OBD port.
- Write the sensor IDs into the vehicle ECU or TPMS module.
- Complete any required drive cycle or dashboard reset step.
- Verify that the TPMS warning light turns off and sensor data reads correctly.

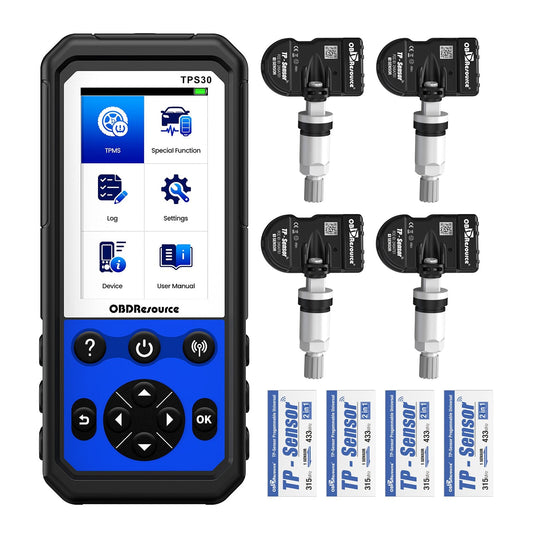

TPS30 TPMS Programming Tool Kit
I recommend the TPS30 when customers need sensor programming, sensor ID read/write, or OBD-based TPMS relearn support.
- Sensor activation and programming workflow.
- Sensor ID read/write support.
- OBDII ID writing where supported.
- Good for shops and advanced DIY users.
Autel MK900TS TPMS Diagnostic Scanner
I recommend the Autel MK900TS for users who need a more advanced diagnostic scanner with TPMS functions and broader service capability.
- Advanced TPMS diagnostic workflow.
- OBD communication for supported vehicles.
- Designed for professional diagnostic use.
- Recommended for repair shops and technicians.
Common Vehicle Types and Recommended Tools
The table below is a practical guide based on common TPMS service patterns. It is not a universal fitment chart. Always confirm the exact procedure for your vehicle year, make, model, and sensor type.
| Vehicle Type / Brand | Common Relearn Pattern | When It Usually Happens | Recommended Tool |
|---|---|---|---|
| GM: Chevrolet, Buick, GMC, Cadillac | Often stationary relearn with sensor activation | Tire rotation, sensor replacement, wheel change | U508 or TPS10 |
| Ford / Lincoln | Often stationary relearn with trigger activation, depending on model year | Tire rotation or sensor replacement | U508 or TPS10 |
| Toyota / Lexus / Scion | Often OBD relearn or sensor ID registration | New sensor installation, wheel set replacement | TPS30 or Autel MK900TS |
| Nissan / Infiniti | Often tool-assisted relearn or OBD registration | Sensor replacement or TPMS light after service | TPS30 or Autel MK900TS |
| Honda / Acura | May use auto relearn, menu reset, or scan-tool procedure depending on system | Pressure reset, sensor replacement, warning light diagnosis | TPS10, TPS30, or Autel MK900TS |
| Hyundai / Kia | Many can auto relearn; some require tool support | New sensors, persistent TPMS light, sensor ID service | TPS10 or Autel MK900TS |
| Chrysler / Dodge / Jeep / RAM | May use stationary, auto, or OBD relearn depending on model | Tire rotation, sensor replacement, new wheel set | U508, TPS10, or TPS30 |
| BMW / Mercedes-Benz / Audi / Volkswagen | Often menu reset, auto relearn, or scan-tool supported procedure | Pressure correction, wheel set changes, sensor diagnosis | TPS10 or Autel MK900TS |
How I Choose the Right TPMS Tool
When a customer asks me which TPMS tool to buy, I do not start with the price. I start with the job.
- If the vehicle supports auto relearn: drive cycle may be enough, but TPS10 can help verify sensor response if the warning light remains on.
- If the vehicle enters learn mode and needs each sensor triggered: choose U508 or TPS10.
- If new sensor IDs must be written into the ECU: choose TPS30 or Autel MK900TS.
- If replacing blank programmable sensors: choose a programming-capable tool such as TPS30.
- If working in a repair shop: a more advanced tool such as TPS30 or Autel MK900TS is usually more practical.
Frequently Asked Questions
How do I know which TPMS relearn method my vehicle needs?
Check your vehicle owner’s manual, service information, or a TPMS tool with a vehicle database. The method depends on vehicle year, make, model, trim, sensor type, and TPMS system design. The three most common methods are auto relearn, stationary relearn, and OBD relearn.
Can U508 or TPS10 write sensor IDs into the ECU?
U508 and TPS10 are mainly recommended for compatible sensor activation, scan, and stationary relearn workflows. If your vehicle requires sensor IDs to be written through the OBD port, choose an OBD-capable TPMS tool such as TPS30 or Autel MK900TS.
When do I need TPS30 instead of a simple TPMS relearn tool?
Choose TPS30 when you need sensor programming, sensor ID read/write, or OBD-based relearn support. A simple activation tool is usually not enough when installing blank programmable sensors or writing new sensor IDs into the vehicle ECU.
Does auto relearn mean I do not need any tool?
Sometimes yes, but not always. If all sensors are compatible and working, the vehicle may relearn after driving. If the TPMS light remains on, a TPMS scan or diagnostic tool can help confirm whether the sensors are transmitting correctly.
Why does my TPMS light stay on after relearn?
Common reasons include low tire pressure, dead sensor battery, wrong sensor frequency, incorrect vehicle selection, unprogrammed replacement sensor, wrong relearn procedure, or a vehicle that requires OBD sensor ID registration.
Choose the Relearn Method First, Then Choose the Tool
TPMS relearn is not one-size-fits-all. Some vehicles learn automatically. Some need each sensor activated in learn mode. Some require OBD writing into the ECU. Start with your vehicle’s required method, then choose U508, TPS10, TPS30, or Autel MK900TS based on the job.
